Cadsum 3D PDF Exporter For Revit
Cadsum 3D PDF Exporter for Revit simplifies the process of exporting Revit models to lightweight and optimized 3D PDF file format, preserving normal and texture information. Options are available to control both the output file size and quality, as well as the accuracy of the model. 3D PDF file is a type of PDF document that incorporates three-dimensional (3D) models. Exported 3D PDF can be viewed using Adobe Reader Free version. These files allow users to view and interact with 3D content directly in the PDF reader. You can rotate, zoom, pan, select, hide, and unhide 3D objects, and choose different views—all without needing separate 3D software.
Revit version supported –
2025, 2024, 2023, 2022, 2021, 2020, 2019, 2018
Plugin Features –
| Features | Feature Description |
| Fast and Accurate Exporting | Fast and accurate in terms of exporting any simple as well as complicated Revit model |
| Customizable Accuracy | Output file accuracy can be handled by adjusting the ‘Decimal Place Precision’ setting option. |
| Optimized 3D PDF File Size | Generates small and optimized 3D PDF files to streamline data handling. |
| Adjustable File Size and Quality | Control output file size and quality using the ‘Level of Detail (LOD)’ setting |
| Material Export | 3D PDF file with Revit materials and color. |
| Normals Export | Export 3D PDF files with or without normals as needed. |
| Texture Export | PDF files with or without textures as needed. |
| Coordinate Flip | Export files with a flip in the Y-Z coordinate system. |
| Unit | Measurement units can be changed using unit option. |
| Metadata Export | Option is provided to write metadata in exported file. |
| Revit Views | All the Revit camera views are exported to 3D PDF file. |
| PDF Light Type | Export the PDF file with a custom Light Type. |
| PDF Rendering Type | Export the PDF file with a custom Rendering Type. |
| PDF Background colour | Export the PDF with a custom background colour. |
| Export 2D views along with 3D View | You can export 2D views alongside 3D views, and you have control over the quality of the 2D images. |
How to Download and Install –
2. Double-click the MSI installer file you downloaded.
3. Follow the on-screen instructions to complete the installation process.
4. Open Autodesk Revit application.
5. Navigate to the Add-Ins tab where you will find Cadsum 3DPDF Exporter.
6. You will see three buttons: Export 3DPDF, App License, and About App.

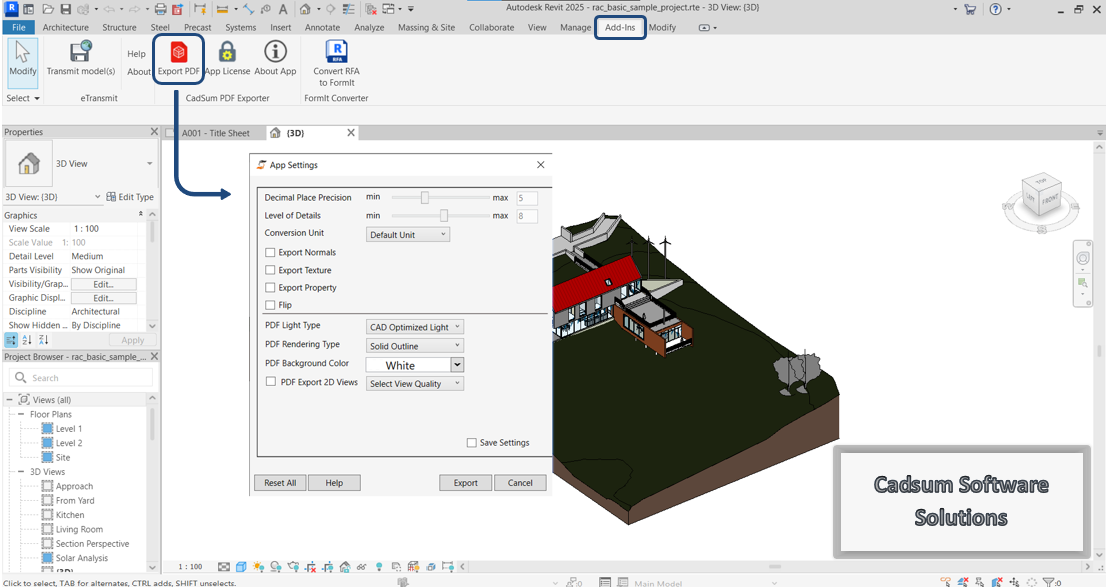

7. Click on Export 3DPDF to open the settings dialog and configure the settings according to your preferences.
8. For additional guidance, follow the instructions in this video.
If you encounter any issues during installation or plugin use, refer to the FAQ or contact our support team for assistance.
Why Choose CADSUM Plugin?
Customizable Features: Provides customizable support to meet your specific needs.
Licensing –
The Free trial version is valid for 18 days and allows you to export up to 50 models for testing purposes. It includes all the features available in the paid version, with no functional restrictions.
For more info contact at: support@cadsum.com
License Types –
Screenshots And Videos
